Original FLYDUINO KISS 3-6S 32A Blheli_32 32bit Dshot2400 Brushless ESC for RC Drone FPV Racing - 30.00 €


Original FLYDUINO KISS 3-6S 32A Blheli_32 32bit Dshot2400 Brushless ESC for RC Drone FPV Racing
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Original FLYDUINO KISS 3-6S 32A Blheli_32 32bit Dshot2400 Brushless ESC for RC Drone FPV Racing

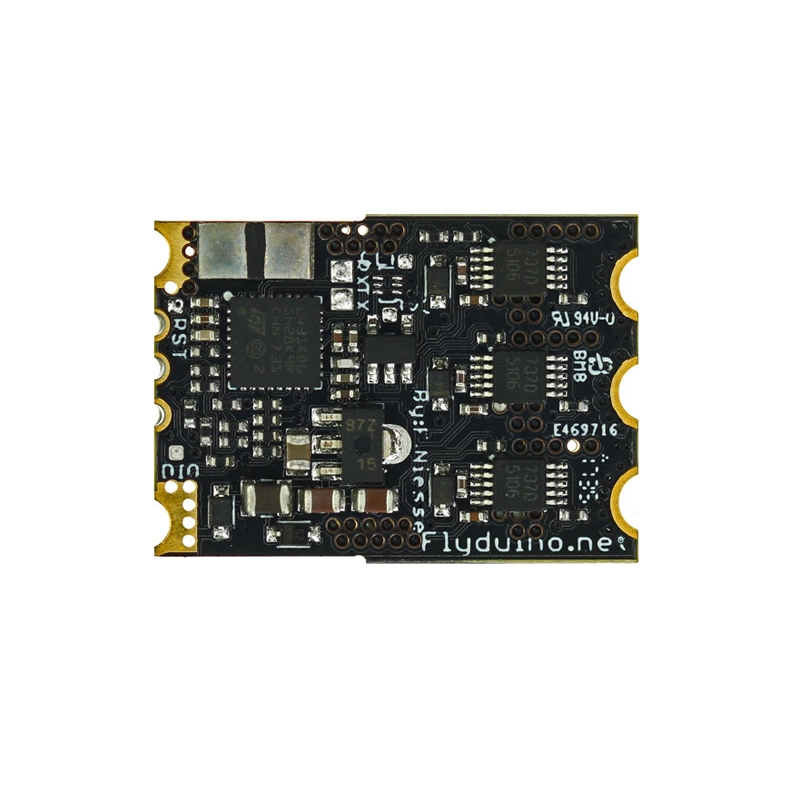

The KISS ESC32A powered by a M4 MCU is the new member in the KISS family, developed for race copters with power hungry motor/prop combinations.
Actively limited to 45A for longuevity it comes with all the features of its little brother, the ESC24A re. With a capacitor it can be driven by up to 6s lipos.

Specification: User Manual, DOWNLOAD
Brand name: FLYDUINO
Item name: KISS 2-6S 32A Blheli_32 32bit Dshot2400 Brushless ESC
32-Bit-ARM Cortex M4 MCU @ 80 MHz
Telemetry capability (voltage, current, temperature, rpm)
Over current protection (measures the current and reduces it to max 45A)
Over temperature protection (reduces the max power if hotter then 100°C)
sinHybrid :: Sinwave/BackEMF Hybrid Commutation for smoother running.)
Dshot 2400 (Full resolution of 2000 steps takes only 6.5μs).
Supports all common Dshot commands like turtle mode, 3D mode and rotation direction change.
Expanded adaptive auto timing (3,25-30° advance on each commutation),
For Race Multicopters (32A continuous also with weak cooling),High max. RPM (500.000ERpm, 71.400Rpm with a 14Pole Motor)
Small size (19 x 27 mm)
Accurate RPM control (2000 steps using Dshot)
No additional capacitor needed for 3-5S. Add a min. 220μF min. 50V Cap for 6S usage!
Very fast throttle response, Linear throttle response, Active freewheeling (low diode losses)
Regenerative braking 3-6S LiPo Dshot 100-2400, Oneshot42, Oneshot125 and normal (25 – 500Hz) PWM auto detected.
Supports FrSky Sbus, Graupner SumD, TBS CROSSFIRE and Multiplex SRXL, S-Port, Graupner HOTT, TBS CROSSFIRE and SensorbusOperating voltage 9 - 30V (3-6s)
Maximum continuous current 32A, instantaneous maximum current 45A, actively limited
600000 ERPM maximum rotation field speed (useage up to 500000 recommended)

Package Included:
1 x KISS 2-6S 32A Blheli_32 32bit Dshot2400 Brushless ESC
