Original FLYDUINO KISS F3 32bit Flight Controller V1.03 OSD MPU6050 STM32F303CCT6 2-6S for RC Drone FPV Racing 4.6g - 32.00 €


Original FLYDUINO KISS F3 32bit Flight Controller V1.03 OSD MPU6050 STM32F303CCT6 2-6S for RC Drone FPV Racing 4.6g
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

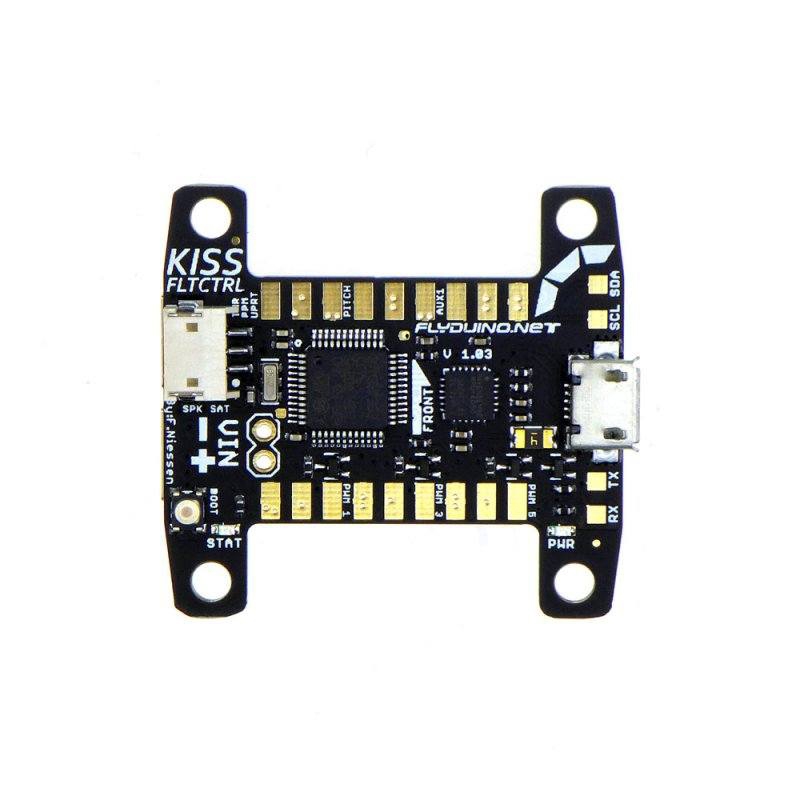

FLYDUINO KISS F3 32bit Flight Controller V1.03 MPU6050 STM32F303CCT6 2-6S for RC Drone FPV Racing 4.6g

As we felt the need for a modern more simplified 32bit Flightcontroller, we made the KISS FC, which includes a complete own Flight Controll Firmware development who get rid of some old ballast.

The Idea was to simplify some things and due to intensive long term testings of some pretty good Pilots we where able to optimize the code.

Normally you just need to choose your Airframe in the GUI and are able to fly (at least with KISS ESC), otherwise you can download presets of well knowen Pilots for given configurations and of course can tweak the PID yourself over the GUI..

The software setup side is reduced as far we can, many things are allready taken in to account for you, if you bring some solid soldering skills you should be able to build your quad pretty quick.

A new feature is also the inbuild telemetry, in combination with our 32bit ESC line its possible to show the live telemetry data via OSD on your FPV live feed or in the KISS FC GUI.

This way you get usefull informations like the Voltage of your battery, current consumption, ESC temperature and motor RPM..

Specification: User Manual, DOWNLOAD
Brand name: FLYDUINO
Item name: KISS F3 32bit Flight Controller V1.03
MCU: STM32F303CCT6 (ARM Cortex-M4, 72MHz) F3 32bit
IMO: MPU6050
Voltage: 2-6S (direct, max. 5s recommended)
Mounting Holes: 3x3cm pattern with 3.2mm holes (compatible with most frame types)
Weight: 4.6g

Features:
• Hardware and software designed for each other
• F3 32bit Flight controller
• Support for multiple analog and digital receiver protocols, PPM, Spektrum Sat (Serial), SBUS, Jeti ExBus, Graupner SumD / SUmO, MultiPlex and PWM
• Live telemetry data from supported ESCs
• Download preset configurations from well-known pilots for popular drones
• Supported Copter frames - Tri, Y4, Y6, Quad +/x, Hexa +/x

Package Included:
1 x KISS F3 32bit Flight Controller V1.03
