Racerstar 2206 BR2206 2600KV 2-4S Motor + RS30A V2 Blheli_S ESC Dshot600 + 5042 3 Blade Prop - 78.99 €


Racerstar 2206 BR2206 2600KV 2-4S Motor + RS30A V2 Blheli_S ESC Dshot600 + 5042 3 Blade Prop
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Racerstar Racing Edition 2206 BR2206 2600KV 2-4S Brushless Motor + RS30A V2 30A Blheli_S ESC OPTO 2-4S Dshot600 + 10 Pairs 5042 3 Blade Propeller
































Description:

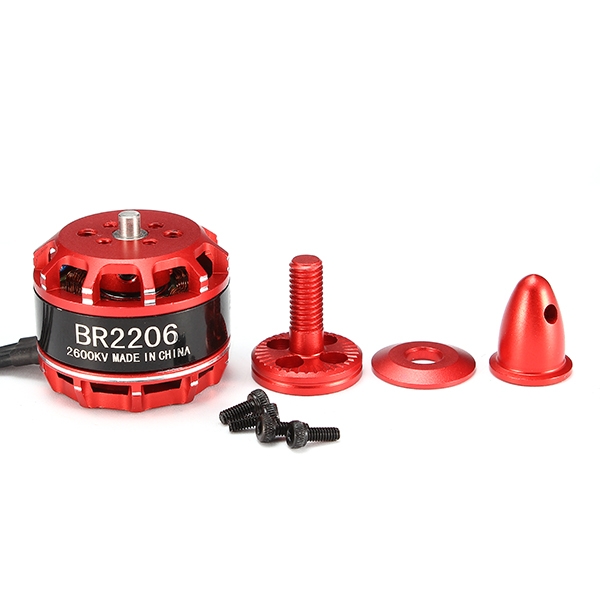

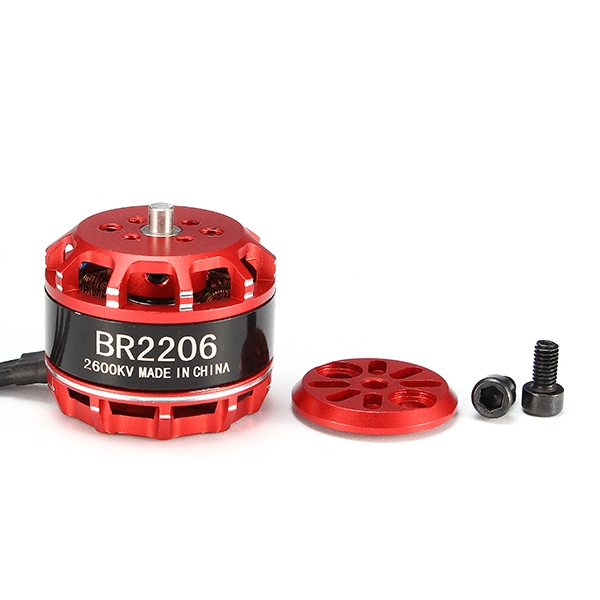

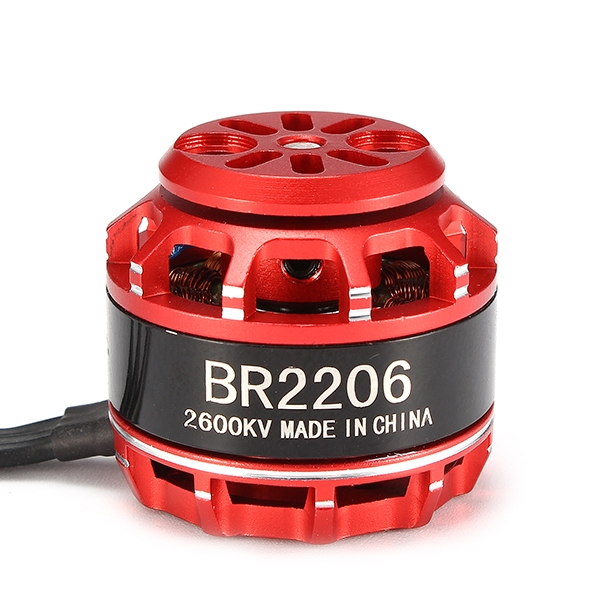

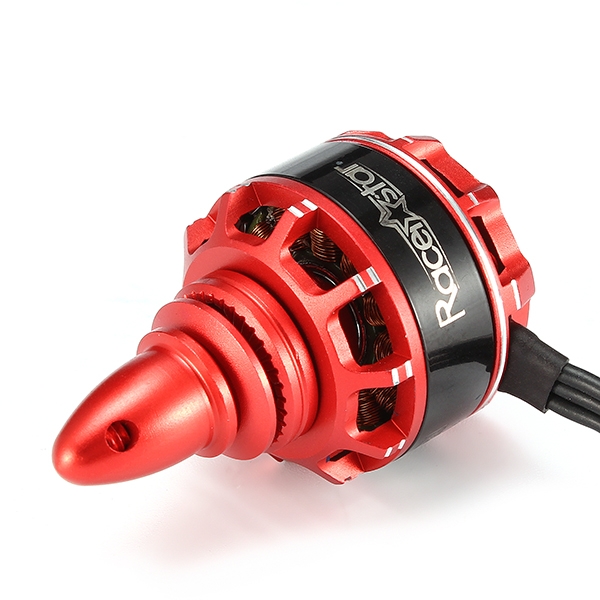

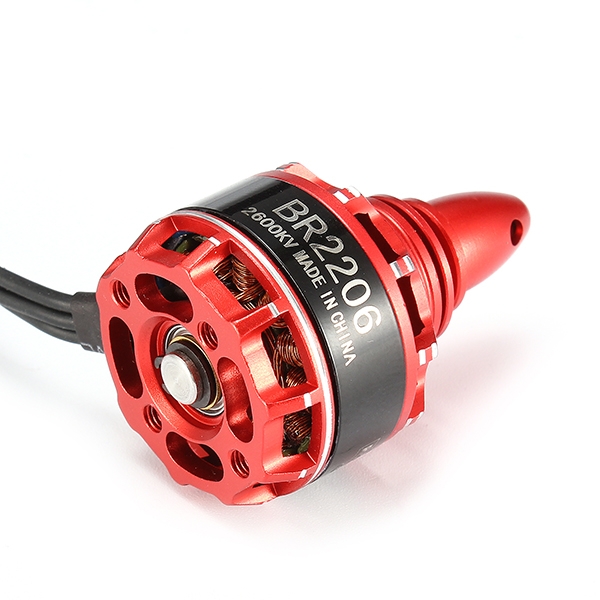

Racerstar BR2206 2600KV 2-4S Brushless Motor:
RPM/V: 2600KV
Height: 25mm
Width: 27.5mm
Shaft diameter: φ2.98
Motor mount hole size: 4-M2, 2-M3
Weight: 32.5 grams
Voltage: 2-4S
Battery: 2-4S lipo battery
Usage: for 200-300 Multirotor Frame Kit

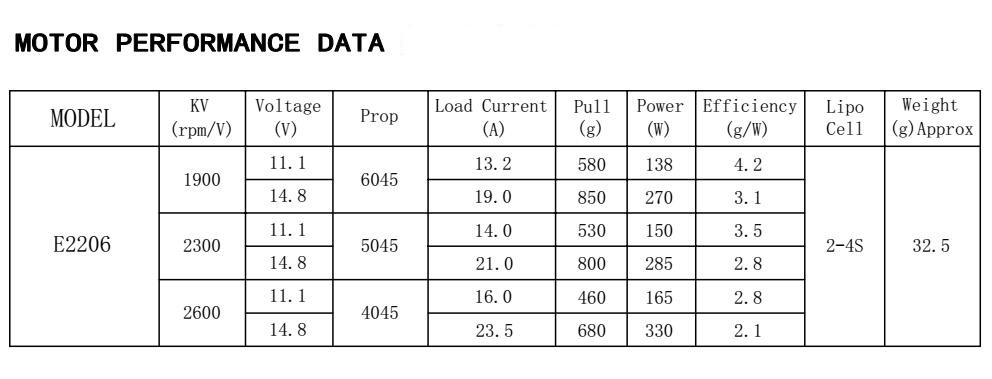

Tested with 14.8V voltage and 4045 propellers:
Load current: 23.5A
Pull: 680g
Power: 330W
Efficiency: 2.1 (g/W)
CW screw thread motor comes with red cap and propeller mount.
CCW screw thread motor comes with black cap and propeller mount.

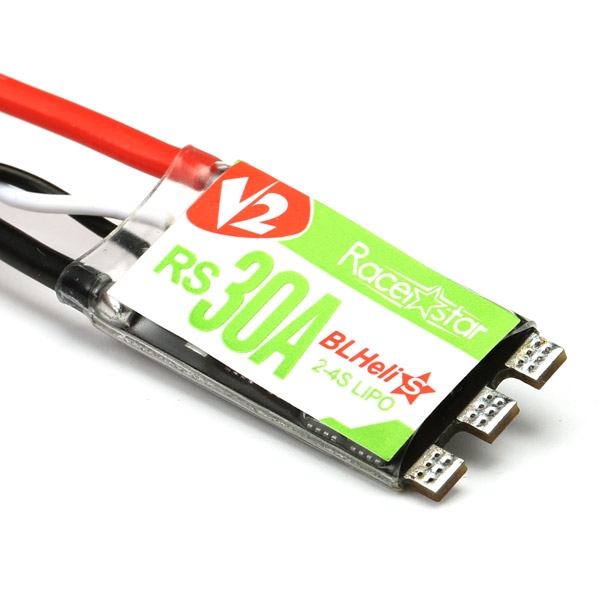

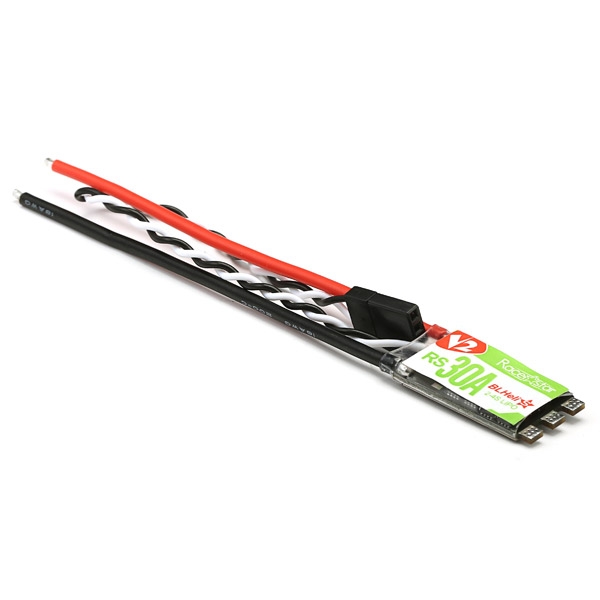

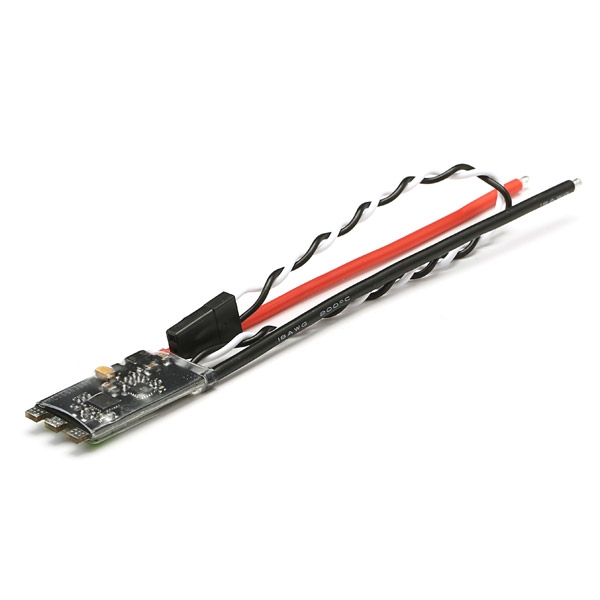

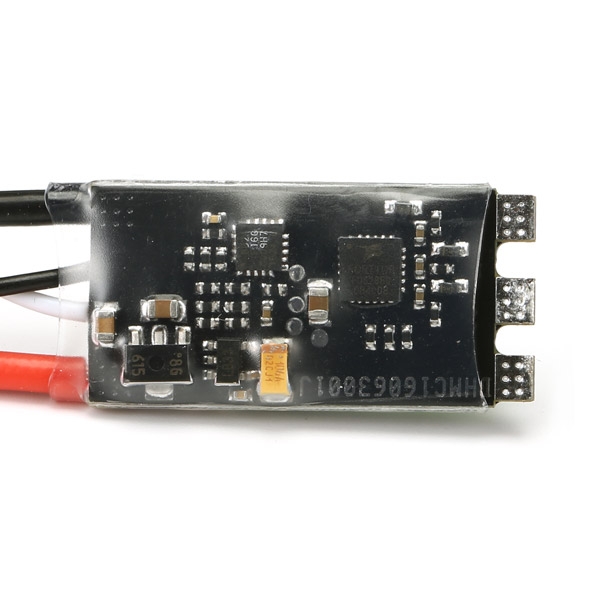

Racerstar RS30A V2 30A Blheli_S ESC OPTO 2-4S:
Model: RS30A V2
Input Voltage: 2-4S
Con.Current:30A
Peak Current(10s):35A
BEC:NO
Programming :YES
Net Weight: 6.26g
Size:28*13mm
Chips on EFM8BB21F16, 48MHZ Greatest .
BLHeli_S is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
Small size combined with light weight for easy installation.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
Support Oneshot42 Multishot 16.5 Dshot600
The input signal is automatically detected by the ESC upon power up.
All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work
excellently in normal operating environments
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.

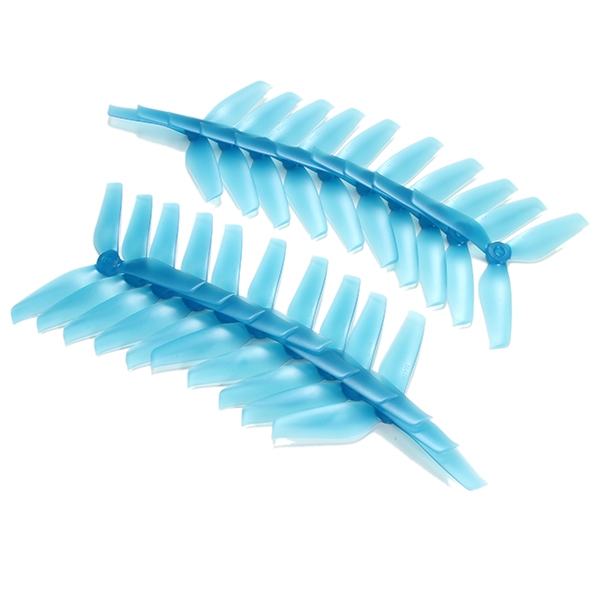

10 Pairs Racerstar 5042 5x4.2x3 3 Blade Propeller:
Material: PC
Color: blue
Quantity: 10 pairs (the same color)
Mounting hole: 5mm
Weight: 90.2g (10 pairs)
9.02 (1 pair)
Usage: for 2204, 2205 etc. 5mm shaft motors.
Package included:
2 x BR2206 2600KV Brushless Motor CW
2 x BR2206 2600KV Brushless Motor CCW
4 x Racerstar RS30A V2 30A Blheli_S ESC
10 x 5042 3 BladePropeller blue CW
10 x 5042 3 BladePropeller blue CCW
