RunCam Micro Swift 600TVL CCD Mini FPV Camera & RunCam TX200 5.8G 48CH Transmitter for RC Drone - 53.68 €


RunCam Micro Swift 600TVL CCD Mini FPV Camera & RunCam TX200 5.8G 48CH Transmitter for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video






Specification:
Model: RunCam Mi​cro Swift
to download the manual: Manual.pdf
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.1mm​ Lens(M8)​ ​
FOV: 160 degree(2.1mm) / 145 degree(2.3mm)
Signal System: PAL / NTSC
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 5.​6g
Dimensions: 19mm * 19mm * 19mm
Model: RunCam TX200
to download the manual: Manual.pdf

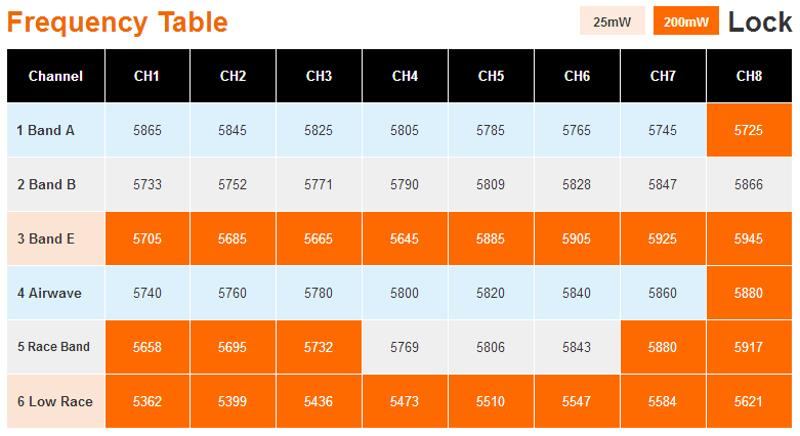

Frequency Channel: 5.8G 48CH
Output Power: 25mW / 200mW
Working Current: [email protected]~400mA
Voltage out: [email protected] 250mA
Voltage in: 1S 3.5-5.5V
Video Input Impedance: 75 Ohm
Antenna: U.FL 5.8G 2dB Omni antenna
PCB Size: 19mm*19mm
Weight: 2.5g (with antenna)


Feature:
It is suitable for RunCam Nano / RunCam Micro Sparrow / RunCam Micro Swift 2 / RunCam Micro Swift FPV Cameras.


Package included:
1 X RunCam TX200
1 X Set of screws
1 X Camera
1 X 1.25mm 3pin to 1.25mm 3pin FPV silicone cable
1 X 1.25mm 3pin to 1.0mm 3pin FPV silicone cable
