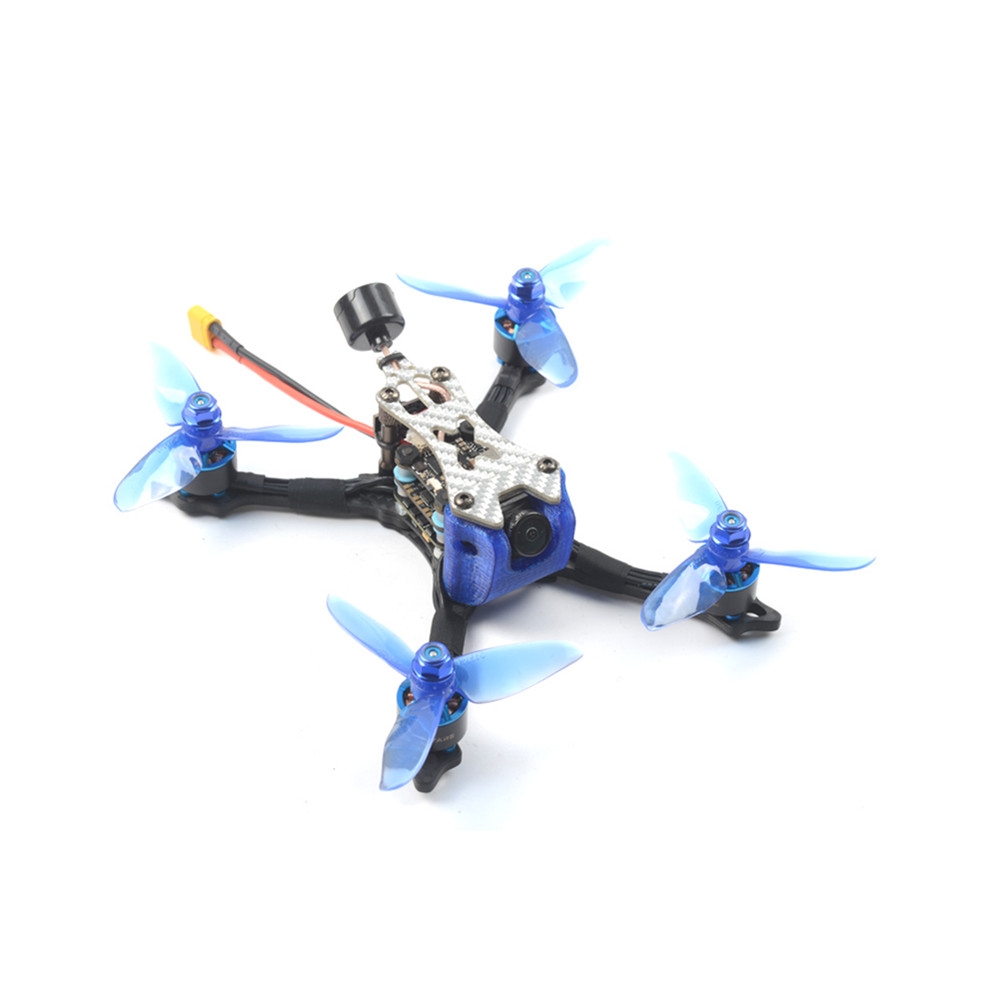

SKYSTARS Ratel 140X 2-4S FPV Racing Drone PNP/BNF Integrated Type F4 8K OSD Runcam Nano 2 VTX 200mW SmartAudio - 144.00 €


SKYSTARS Ratel 140X 2-4S FPV Racing Drone PNP/BNF Integrated Type F4 8K OSD Runcam Nano 2 VTX 200mW SmartAudio
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specifications:
Frame Kit
Frame Kit:
Name: Skystars Ratel 140X
Wheelbase: 145mm
Arm Plate Thickness: 4mm
TOP&Bottom Plate Thickness: 1.5mm
Material: 3k Carbon Fiber & TPU
Screw: TAIWAN YFS BRAND SCREW 12.9 level screw
Weight: 49g
Flight Control
Micro F4 Flight Control Board ( D-Shot Version):
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 2mm mounting holes (M2)
Weight:2.3g
Support Subs/PPM/DSMX receiver
ESC
25A 2-4S Blheli_32 4 in 1 ESC:
Input Voltage: 2-4S Lipo battery
Constant Current: 25A
Peak Current: 30A
BEC Ouput: NO
Firmware: BLheli_32
Size: 27x27mm (main board) 27x31mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4g
CPU: 32-bit ARM Cortex MCU@48mHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600/1200, forward and reverse
Transmitter Mini FPV Transmitter:
Output power: 25mW/100mW/200mW switchable
Control mode:button OR Channel changes and Pitmode setting through PWM
BAT: 7-26V,BEC 5V-1A
200mA----200mW
Video system: NTSC/PAL
Antenna: RPSMA
Frequency: 5.8GHz 5 bands 48channels, with Raceband: 5362-5865 MHZ
Size: 24*24mm(L*W),Hole:20*20mm
Weight: 2.4g
Motor ST1408 KV 3800, race edition
Weight: 17g
Size:17X30mm
*NMB bearing of high RPM for steady operation
*Arc magnets.
*Ultra light
Camera
Runcam nano 2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: L14mm*W14mm*H16mm
Parts DALPROP T3056C 3-blade Propeller*8
WS2812 Colorful LED w/ 5V Active Alarm Buzzer Support Cleanflight Betaflight*1
Buckle Battery Strap*1
Non-slip Battery Mat *1
Screw*12
Antenna RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone
Weight: 7.4g
Size: 60mm x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: IPEX
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Receiver PNP ( Without Receiver)
BNF ( With Optional Receiver)

Package Included:
1x SKYSTATS Ratel 140X 4S FPV Racing RC Drone
