Speedy Bee F4 V2.0 AIO 3-6S Bluetooth Flight Controller OSD w/ LC Filter 5/9V GPS Barometer Module for RC Drone - 37.00 €

Speedy Bee F4 V2.0 AIO 3-6S Bluetooth Flight Controller OSD w/ LC Filter 5/9V GPS Barometer Module for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Speedy Bee F4 V2.0 AIO 3-6S Bluetooth Flight Controller OSD w/ LC Filter 5/9V GPS Barometer Module for RC Drone

Specifications

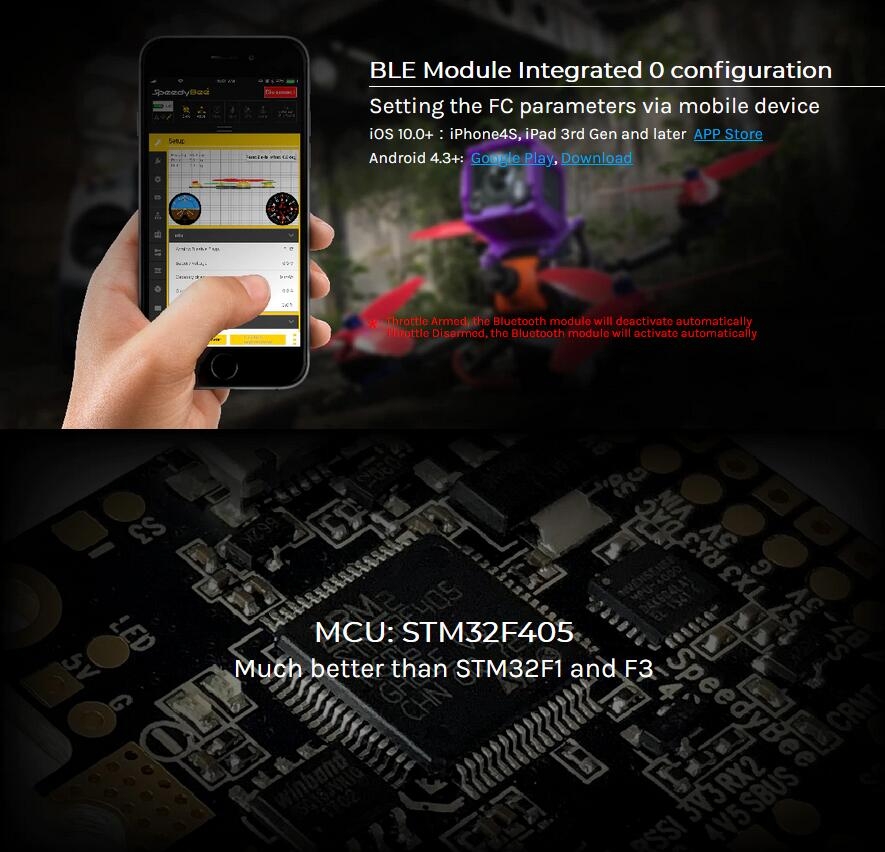

MCU STM32F405
IMU MPU6000
OSD BetaFlight OSD w/ AT7456E chip
BLE Module Inner connect to UART5 for remote setting with Speedy Bee App or other similar apps
BlackBox 16MB onboard dataflash
Current Sensor 200A(Scale 302)
Power input 3s - 6s Lipo
Power output 4.5V * 1 , 3.3V * 1, 5V * 3(Max.2A) , 9V * 1(Max.2A)
Cam And VTX power output Built-in LC-Filter for 5V and 9V
ESC power output 4 * VCC output
UART UART Pads * 3(UART1, UART3, UART4)
UART2 for Receiver Built in inverter of RX2 for SBUS input through SBUS pad, RX2 pad used for PPM, DSM2, DSMX, IBUS
RSSI input RSSI input solder pad
I2C Used for external GPS, Barometer module
Buzzer Buz- and 5V pad used for 5V Buzzer
ESC signal s1 - s7
LED pin Used for WS2812 LED
Boot button Used to easy enter DFU mode
Weight ≈8.8g
Dimension 36*39*7mm

User Manual, DOWNLOAD

Package Included:
1 x Speedy Bee F4 V2.0 AIO 3-6S Bluetooth Flight Controller
