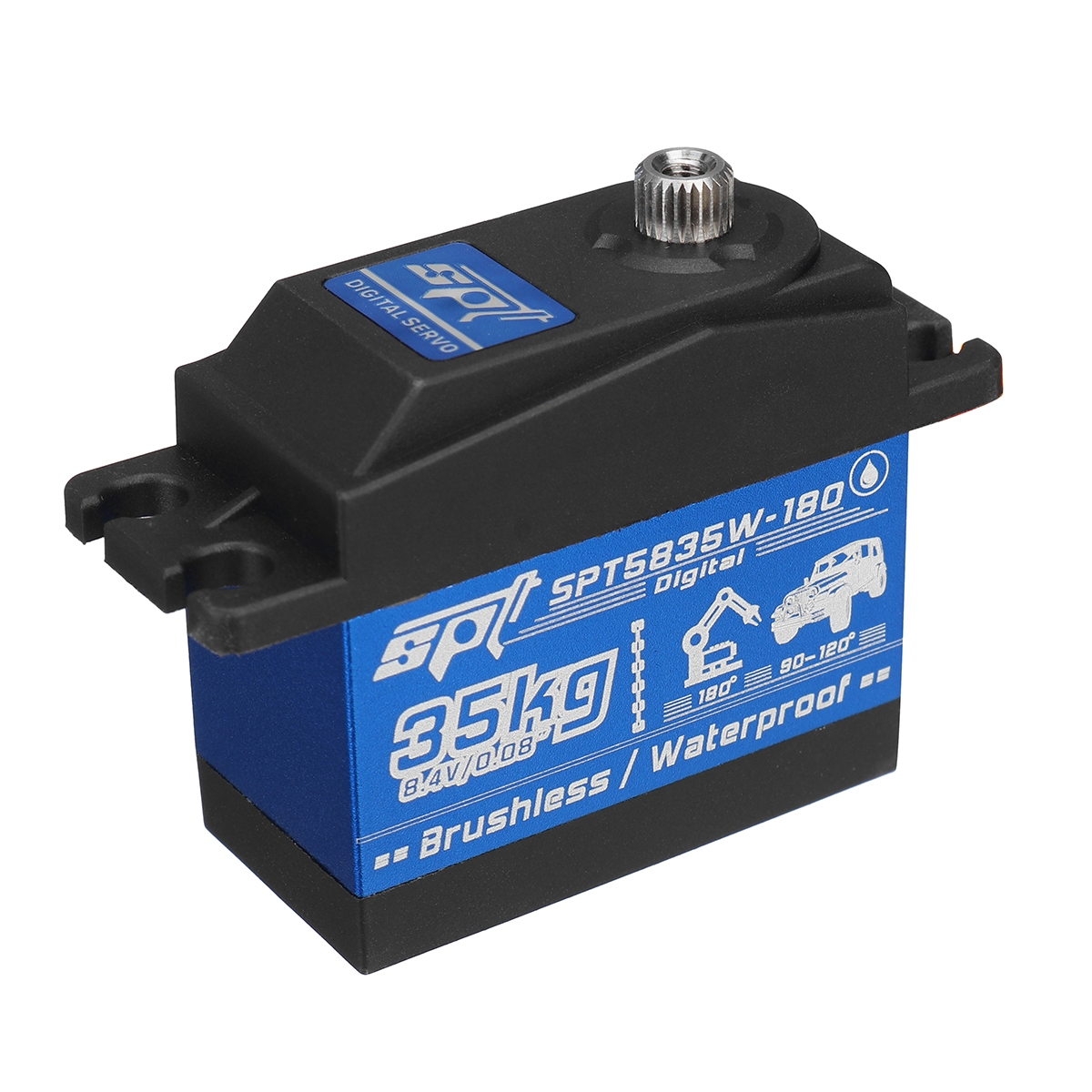

SPT Servo SPT5835W-180 35KG Large Torque Brushless Motor Metal Gear Waterproof Digital Servo for 1:8 Remote Control Car Climbing Vehicles - 42.00 €


SPT Servo SPT5835W-180 35KG Large Torque Brushless Motor Metal Gear Waterproof Digital Servo for 1:8 Remote Control Car Climbing Vehicles
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Features:

1. The steering gear has slow start function: it is difficult to see with naked eyes that the current of the steering gear is relatively large at the moment of starting or reversing, so the service life of the steering gear is relatively long with this function;

2. Load blocking protection function: when the steering gear is continuously blocked or the angle of load blocking is greater than 3 degrees, the duration is 10 seconds and the current is maintained at 2.5 A or more, the steering gear starts protection. At this time, the locking force is reduced by half. After the load blocking is removed, the steering gear will return to normal when the remote control rotates at will.

3. Voltage and current: the steering gear support voltage is between 4.8v-8.4v, and the BEC is at least 2A or above;

4. Angle range: the default of the remote control is 90 degrees, the maximum is 120 degrees; support the control board 0.5-2.5ms, the angle is 180 degrees;

5. Scope of application: remote control vehicle, climbing vehicle; single chip microcomputer control robot, manipulator, etc;

Upgrade note: this model is currently upgraded to stainless steel gear


Specification:

Brand:SPT Servo

Potentiometer: Mechanics

Motor:Brushless

Voltage Range:4.8V/6.0V/8.4V

Neutral Point:1500μs

Signal Frequency:330Hz

PWM Voltage:3.3V-5.0V

PWM Voltage:3.3V-5.0V

Feedback Angle:No

Operating Temperature:-10°C-50°C

Cycle:20ms

Dead band:2μs

Default Direction:CCW

Yes / no Lock:Lock

Remote control Angle:90°

500-2500μs Angle:180° / PWM

Quiescent Current:10mAh

Rated Current:1.5A

Blocking Current:2.5A

Weight / Dimensions:67g / 40.5*20*37.5mm

Gear Material:All Metal Gear

Shell Material:Half Aluminum Shell

Bearing:2BB

Connector Wire Length:260MM

line Definition:Brown-/Red+/Orange s

Operating Speed:6.0V/ 0.11"/60°

8.4V/ 0.08"/60*

Stall Torque:6.0V/ 25kg.cm

8.4V/ 35kg.cm


Package Included:
1x SPT Servo
