Super Small DVR Module 1280*720 HD Recorder

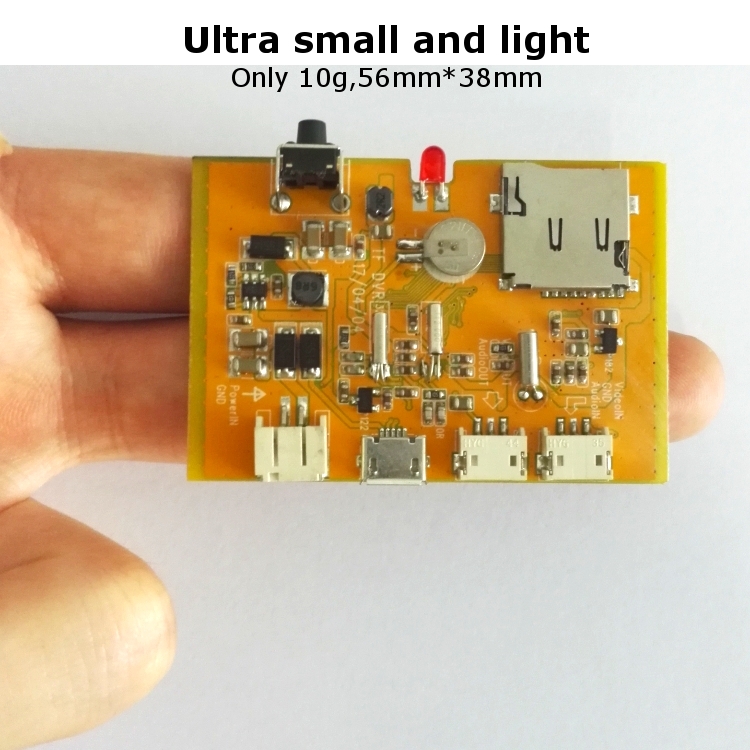

56mm*38mm 10g Ultra Light
for FPV RC Drone Medical Education Car
56mm*38mm 10g Ultra Light
for FPV RC Drone Medical Education Car
Features
Support 32g SD card
Support auto gapless loop recording.
Files can be read by connecting USB to PC, and data can be set.
DC 5V-15V wide voltage input , meeting the needs of multiple situations
Medical,education,rc drone,car ...
Compatible with normal analog camera
Start recording when power on
Press the button during recording, it will stop;press again,will restart.
The time of DVR can be updated by PC.
Prameter
Size : 56mm*38mm
Weight : 10g
Specification
Video Conpressed : MJPEG
Playback Format : AVI
Audio Conpressed : 128kbps PCM
Audio Format : MP3
Frame : 30fps
Frequency : 50HZ/60HZ
Support SD : 1-32GB(not included)
Resolution : HD(1280X720),VGA(640X480),CIF(320X240)
Video Files: 1min/5min/10min/15min
AVIN/AVOUT
Format : NTSC/PAL selected
Recording Mode : Power on recording
Time Watermark : ON/OFF
Stocking Mode : Automatically loop cover previous video when SD is full
Control Mode : usb/button
Input Voltage : 5-15V
Working Consumption : 0.8W
Working Temperature : -10â-+60â
Package Included
1 x DVR
3 x AV Cable
