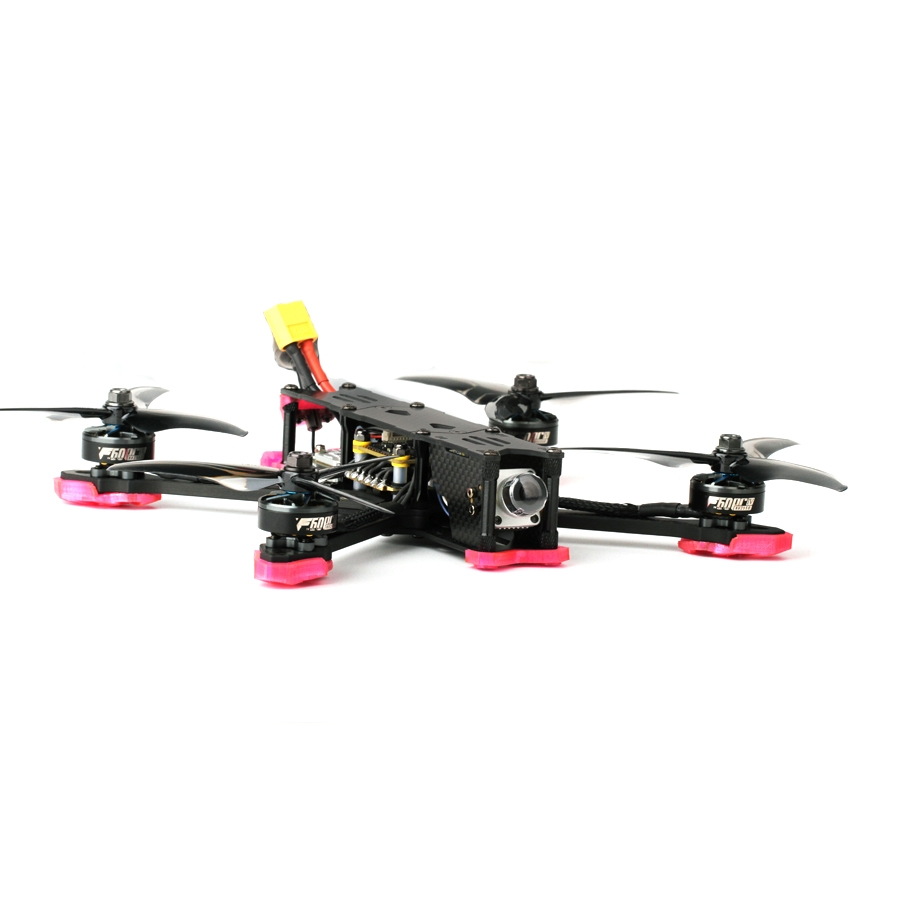

T-MOTOR FT5 HD 5.1 Inch 225mm 4S / 6S Freestyle FPV Racing Drone PNP Caddx VISTA HD VTX 60A ESC 1750KV 2550KV Motor - 429.00 €


T-MOTOR FT5 HD 5.1 Inch 225mm 4S / 6S Freestyle FPV Racing Drone PNP Caddx VISTA HD VTX 60A ESC 1750KV 2550KV Motor
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

T-MOTOR FT5 HD 5.1 Inch 225mm 4S / 6S Freestyle FPV Racing Drone PNP Caddx VISTA HD VTX 60A ESC 1750KV 2550KV Motor


Specification:

Brand name: T-MOTOR

Item name: FT5 HD 5.1 Inch 225mm 4S / 6S Freestyle FPV Racing Drone

Motor: T-MOTOR F60PRO IV 2550KV 4S / 1750KV 6S

ESC: T-MOTOR P60A 4 IN 1 ESC

FC: T-MOTOR F4 HD

Camerea & VTX: VISTA HD VTX
Antenna: Cherry HD
Propeller: T5143*2 bags

Battery Strap: 250mm


F4 Flight Controller ( Diagram Picture)
Gyro: MPU6000
Master chip: STM 32 F 405 RGT 6
Firmware: T-Motor F4 (Betaflight)
BEC: 5v/2A (Receiver), 10v/2A (VTX
Mounting hole: 30.5 × 30.5 mm
Weight: 7 g
Size: 37×37×7 mm
Application: Compatible with DJI Digital FPV System


T-MOTOR F60PRO IV 2550KV 4S / 1750KV 6S

Model: F60 Pro IV
Item Name: 2207 1750KV 2550KV Brushless Motor
KV: 1750KV 6S/ 2550KV 4S)
Shaft Diameter: 5mm
Shaft Height: 12mm
Configuration: 12N14P
Input Voltage: 4-6S@1750KV; 6S@1750KV

4S@2550KV; 4S@2550KV
Idle Current(10V): 1.2A@1750KV; 2A@2550KV
Peak Current(60S): 39A@1750KV; 46A@2550KV
Internal Resistance: 65mΩ@1750KV; 37mΩ@2550KV
Max. Power(60S): 940W@1750KV; 746W@2550KV
Dimension: 27.1x31.1mm
Weight: 32.5g@1750KV ; 32.4g@2550KV


VISTA HD VTX

Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
Min. Latency (end-to-end): Low Latency Mode(720p 120fps): 21-28ms, High Quality Mode(720p 60fps): 30-40ms
Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
I/O Interface: USB-C,IPEX,3-in-1 Port,microSD card slot
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
Input Power: 7.4-26.4V
DJI Camera Specifications:
Sensor: 1/3.2'' CMOS
Effective Pixels: 4M
Lens: 2.1mm,f/2.1
Shutter: Rolling shutter
ISO: 100-25600

FOV: 150° (D);122° (H);93° (V)


Package Included:

1 x FT5 HD 5.1 Inch 225mm Freestyle FPV Racing Drone (4S / 6S Optional)
