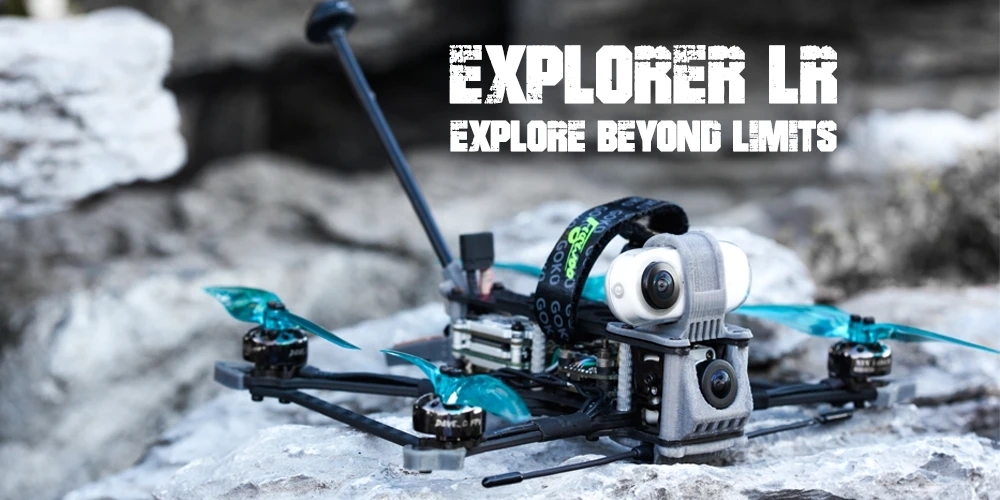

Under 250g Flywoo Explorer LR 4 F4 OSD 4K Micro Long Range 4 Inch FPV Ultralight Racing Drone PNP BNF w/ GPS & Caddx Tarsier 4K V2 Camera - 249.00 €


Under 250g Flywoo Explorer LR 4 F4 OSD 4K Micro Long Range 4 Inch FPV Ultralight Racing Drone PNP BNF w/ GPS & Caddx Tarsier 4K V2 Camera
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:

Brand Name: Flywoo

Model: Explorer LR ( 4K Version w/ Tarsier 4K V2 Camera)

Item Name: 4 Inch F4 OSD Long Range FPV Drone

Weight: 246g

Flight Time: 15-16 mins


GOKU F411 Micro Stack

- F4 OSD Flight Controller

Brand Name: Flywoo

Model: GOKU F411 FC
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro: no
black box: 8M
LED:8*WS2812
BEC Output: 5V@2A
Integrated LC Filter
Firmware target: FLYWOOF411
Size: 24×24mm board,16mm mounting holes (M3)
Weight: 2.6g

GOKU BS13A ESC

Brand Name: Flywoo

Model: GOKU BS13A ESC
ESC MCU: BB21F16G
Continuous current: 13A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Size: 24×24mm board,16mm mounting holes (M3)
Weight: 2.6g

GOKU VTX625 FPV Transmitter
Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 5V
LED: 4*WS2812LED
Video System: NTSC/PAL
Antenna: IPEX
Size: 31MM*31MM
hole: 16*16mm/20*20mm/25.5*25.5mm
Weight: 3g
NIN 1404 V2 2750KV MotorBrand Name: FLYWOO
Model: NIN 1404
Item Name: 1404 2750KV 4-6S Brushless Motor
Color: Titanium
Input Voltage: 4-6S
Stator diameter: 14mm
Stator height: 4mm
KV: 2750KV
Shaft size: M1.5
Gemfan 4024 Propeller

Brand Name: Gemfan

Item Name: 4024 4x2.4 4 Inch Propeller

Quantity: 2 CW & 2 CCW

GOKU GPS Mini V1.0 Module

Flywoo Goku Gps Mini V1.0 rescue function how to work ?
1. Before disarm, GPS must search for more than 5 satellites to lock the home position.
2. After disarm, observe the OSD data during the flight,

and the rescue function can work normally only if the distance exceeds 100 m.

Otherwise, the quad will crash.
3. If the remote control suddenly loses signal, the GPS rescue function will work automatically

and return to the home position.

(Set the AUX of GPS rescue mode in betaflight Failsafe, the default is AUX3 2000)

Caddx Tarsier 4K V2 Camera
1080P HD resolution dual lens- 4K F2.8 lens and 1200TVL FPV lens - to satisfy different needs.
Dual digital microphones that outputs audio separately in different camera modes.
Support video transmssion via WiFi signal, the live image can be received by APP on smartphone .
With DVR board, HD recording, support U3 sd card.
Support OSD display separately
Support parameter adjustament via APP
Support remote tuning via flight controller
Anti-shake performance for stable aerial photography.

Recommend Lipo Battery

( NOT Included)

Recommend 4S 650-1300mAh Lipo


Pacakage Inlcluded:

1x Prebuilt and tested Explorer LR Drone
1x Spare Front Arm
1x Side carbon plate 1 set
1x Spare srew
4x Gemfan 4024 Propeller
1x Flywoo 4X10mm Arm led board
