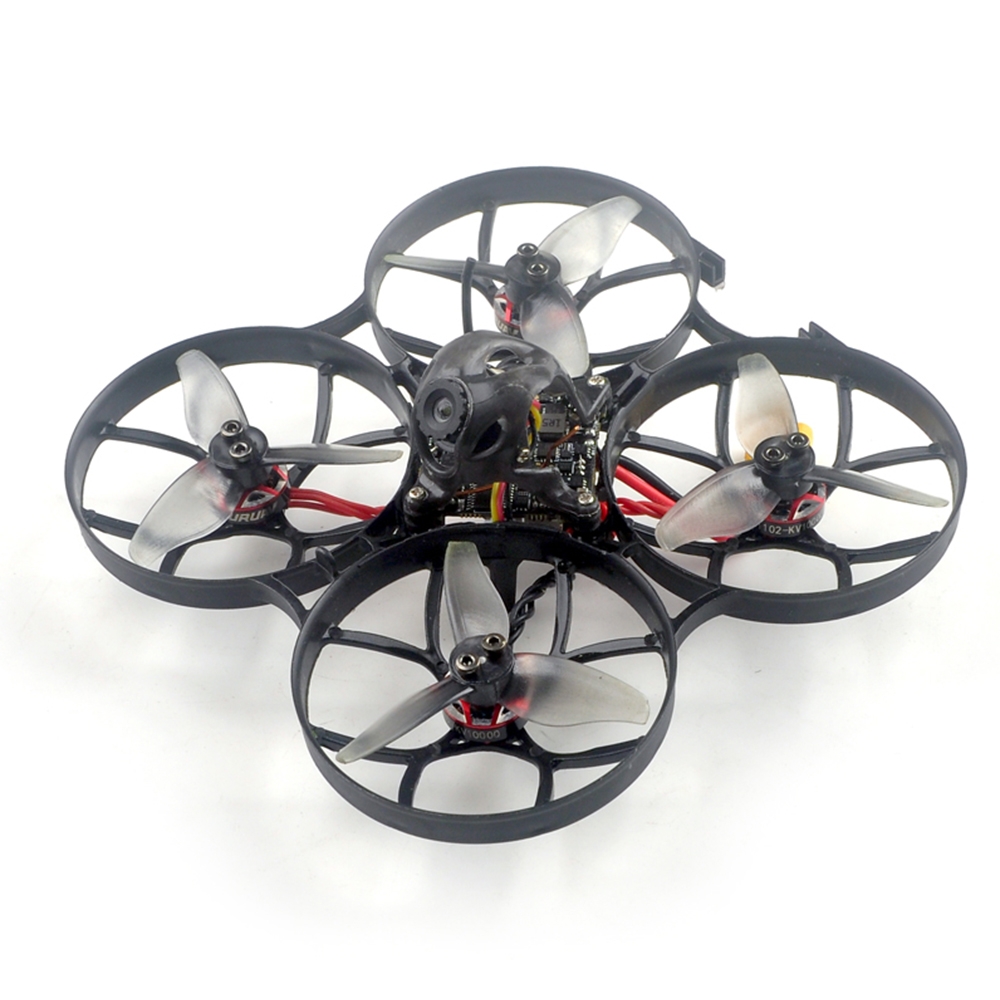

URUAV UZ85 85mm 2S DIY Whoop FPV Racing Drone PNP/BNF Caddx ANT Lite Cam AIO 4IN1 CrazybeeX FC 1102 10000KV Motor 5A ESC - 75.00 €


URUAV UZ85 85mm 2S DIY Whoop FPV Racing Drone PNP/BNF Caddx ANT Lite Cam AIO 4IN1 CrazybeeX FC 1102 10000KV Motor 5A ESC
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Notice:
1. This is the DIY version that comes unassembled.
2. It comes without battery and charger.


Specifications:

Brand Name: URUAV
Item Name: UZ85

Wheelbase: 85mm
Size: 115mmx115mmx45mm
Weight: 36g(without battery)

Compatible Battery: 2S 300mAh/350mAh/450mAh/520mAh


Motor

Mode: 1102 10000KV

Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):1-2S

Propellers

Blades:3

Material:PC

Pitch:2.3Inch

Prop Disk Diameter:52.17mm

Center Thickness:5mm

Center Hole Inner diameter:1/1.5mm

3 Holes

Max Prop Width:8.94mm

Weight:0.88g

Flight controller

(Frsky SPI RX version) CRAZYBEEX FR V1.0 FC Firmware target: CrazybeeF4FR


(Flysky SPI RX version) CRAZYBEEX FS V1.0 FC Firmware target: CrazybeeF4FS


(No receiver version) CRAZYBEEX PNP

V1.0 Firmware target:CrazybeeF4DX


MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board Size: 28.5 * 28.5MM
Power Supply: 1-2S Battery Input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 Ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky Receiver or No Receiver
Built-in 5V 1A BEC
Built-in Voltage Detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power Supply: 1S LiPo/LiPo HV

Current: 5A Continuous, Peak 6A (3 seconds)
Support BLHeliSuite Programmable
Factory Firmware: S_H_50_REV16_7.HEX
Default Protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

Compatible SPI BUS Receiver Frsky D8

Compatible Non EU transmitter D8 model

Channels: 8CH
Failsafe Support
No Ground Interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard Flysky SPI receiver Version

Compatible SPI BUS Receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8CH(AFHDS) or 14CH(AFHDS-2A)

Failsafe Support
No Gound Interference ( Transmitter and receiver 1 m from the ground): 100~200m

No receiver version

Support sbus/ibus/spectrum/tbs crsf receiver

Onboard 5.8g VTX

Output Power: 25mw
Frequency: 40CH
Input Voltage: 3.3V 5.5V
Current Consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race Band

Smartaudio Ready

Caddx ANT lite 1200tvl Camera

Image Sensor: 1/3" CMOS Sensor

Horizontal Resolution 1200 TVL

TV System NTSC/PAL switchable

MENU SUPPORT

IMAGE: 16:9

Synchronization Internal

Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio >52dB (AGC OFF)

Video Output: CVBS

Lens: 2.1mm

Min. Illumination [email protected]

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 2 DNR

Dimensions 14mm*14mm

Wide Power Input: DC 3.7-18V

Work Temperature: -20℃~+60℃

Work Humidity: 20%~80%

Weight: 1.5g (N.W.)



Features:

1. The Best worth 2S whoop PNP Kit in the market

2. 36gram 2s brushless 85mm whoop

3. New AIO 4in1 CrazybeeX flight controller

4. Smooth and powerful

5. CADDX ANT Lite Camera

Receiver Option:

Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

No internal receiver version


Package Included:

1 X 85mm Frame

Option1: CrazybeeX FR V1.0 built-in internal Frsky SPI D8/D16 receiver

Option2: CrazybeeX FS V1.0 built-in internal Flysky SPI receiver

Option3:CrazybeeX PNP V1.0 no receiver version

4 X URUAV 1102 KV10000

1 X Gemfan toothpick 2023 Propellers(2cw+2ccw)

1 X Caddx Ant Lite 1200TVL Global WDR Nano FPV Camera

1 X 5.8G 25mw 40ch vtx (Flight controller built-in)
